Interactive Time Lines

I was trying to estimate the date/time for undated events in an 18th century travel diary. Realizing it would help to use OOCalc for date time math such as daily totals and speed estimates, I set up a spreadsheet for the purpose. As I worked on the spreadsheet I thought it would be great to see a time line graph to check my work for errors. Searching around it became clear that none of the built-in graphing functions in spreadsheets would work for creating a time line graphic. It appears that most people simply use drawing tools to make time lines.

Then I found the Simile Widgets Timeline component a versatile JavaScript based solution. Soon after I got a time line going it became clear that keeping the data file in sync with the changing spreadsheet data was cumbersome. With all the data already in OOCalc I decided it would be nice to output formatted data directly from the spreadsheet for use in the timeline.

With my success in creating a spreadsheet for this one project I decided to create a generic version of the spreadsheet that covers all time line attributes. The spreadsheet contains a final version of my custom Calc functions for time line JSON data creation that handles all time line data options (download the spreadsheet here). To test out my new OOCalc functions I created a time line of English and British Monarchs (also useful for my research) starting with my spreadsheet sample. I haven’t finished adding text excerpts to the monarchs time line but it does have pictures and Wikipedia links for all items.

Last month while organizing notes from a tour of historic sites I found I had not recorded the dates and times in the notes. As I was giving myself a dope slap for failing to record the times it dawned on me that the photos I took would give me the missing time information. While I was viewing the photos to get the times from the EXIF data it occurred to me that I could set up nearly automatic time line generation using my spreadsheet and the command line ExifTool.

To start you open a command prompt in the directory with your photos and then run the following command line.

"C:Program FilesEXIFtoolexiftool.exe" -p "$filename, $createdate" -q -f -d "%Y/%m/%d %H:%M:%S" . >PhotoTimes.csv

This creates a CSV data file containing the image filename and creation date that can be opened by OOCalc. Using the spreadsheet you generate a JSON data file to give you a time line as shown in these screenshots.

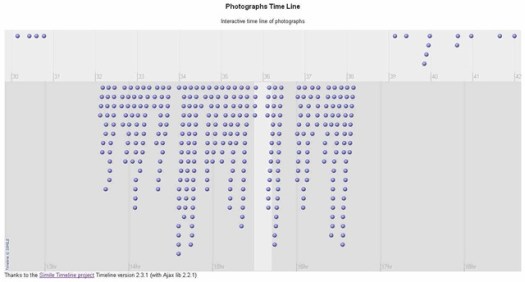

TimelineScreenshot1

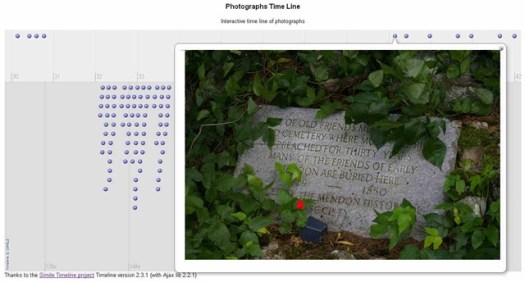

TimelineScreenshot2

I’ve put a zip archive with the files used to create the photo time line on my site. Download the archive from this link.

The archive contains these files for the Photographs Time Line:

PhotoTimes.csv output from the ExifTool run
PhotoTimeline.ods spreadsheet for creating the JSON data file
PhotoTimes.js the JSON data file
PhotoTimes.html HTML page for displaying the time line
PhotoTimes.css CSS for better control of image size

See Also:

Simile Widgets Timeline documentation

Firefox 3.5 image issue

Firefox 3.5 is a nice update to my favorite browser. Of course as usual when Firefox gets updated some extensions won’t work until the author updates it or you hack the installer. The speed improvement in the JavaScript engine is very noticeable and worth any upgrade frustration.

There is one issue I encountered is some jpeg images being shown too dark and with the contrast too high like this:

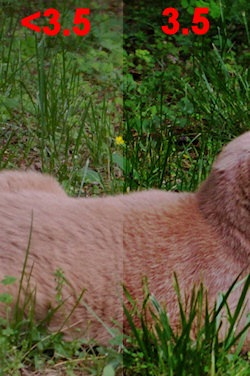

FirefoxColorProblem

This is due to the new color profiles support being enabled by default while there is still a bug in the implementation. to work around the issue change the gfx.color_management.mode config option from the default of 2 to 0. This will get images back looking the way they do in other browsers and previous versions of Firefox. If you don’t know how to change advanced options in Firefox see the instructions here.

Once they’ve fixed the bug I’m hoping the color profile support will work OK but, there is a caveat listed at the Gfx.color_management.enabled page.

Without a properly calibrated monitor and a correct color profile, color management may actually make colors look worse.

I’m keeping my fingers crossed but, I really don’t know how well calibrated most monitors are or if they have a proper color profile installed. Hopefully I won’t need to edit all the photos in my album to make it work correctly. If it comes down to that I think Ill just add a note saying “To see the photos properly you can’t use Firefox 3.5, every other browser, including older versions of Firefox, work fine”, ouch.

More info and opinions:

http://www.flickr.com/help/forum/en-us/99676/

http://hacks.mozilla.org/2009/06/color-correction/

Happy Holidays

I’ve been busy with too many other things to post much over the past few months. Much of my free time has been spent working on photographs and various site updates. I do my web development on a local mini-server, backup to my main Linux PC and then update the live server. In addition to the backup & synchronization utility for Windows that I use, I’ve come to rely on the synchronization utility built in to the Krusader file manager. Along the way I got tired of manually setting my original photo files read-only so I wrote a script to automate that process and compliment the other photo workflow script I wrote.

The first snow accumulation this year was later than usual, 12/7.

First Snow

But the weather finally caught up with the season on 12/19 to 21 giving me over a foot of snow to move.

Big Snow

We found out my sisters cat, Bootsie, had worms when I went to clean up what I thought was basic hairball puke and saw a worm on 12/13. We thought he had roundworm but the tests by our great veterinarian showed Bootsie to have lungworm, poor little guy. The good news was that there is simple injection to cure lungworm but, the bad news was that we needed to have him tested for heartworm because the lungworm treatment can be bad if the cat has heartworm too. I say bad news because the test for heartworm is a blood test, a bigger needle in the leg that made Bootsie scream. He got over the blood taking fast and the tests came back negative a couple days before Christmas, a great Xmas gift. Bootsie got his lungworm shot Friday and we’re all relieved that he’s on the way to finally getting rid of his worms. Here’s Bootsie taking a catnap under the tree in a new bed he got from Santa.

Bootsie napping

Another thing that’s taken up a lot of free time the past months is work I’ve been doing on a new long term project. After living in the Blackstone River Valley National Heritage Corridor since its designation 22 years ago, I’ve decided to make an effort over the next few years to see every site. To aid in my project I’ve been creating places files for Google Earth to help me plan trips in the BRVNHC. I’ve posted the first versions of my places and custom icon files along with photos and other information on my main web site.

I’m taking vacation time through the end of the year so, I hope to finish up some of the posts that have been in my drafts folder for too long now.

Poor Man's Ring Light

imgp09411When taking indoor macro photos getting the lighting correct has always been a challenge for me. In the past I would use two or more halogen desk lamps for lighting but, getting all the lamps positioned correctly takes a long time. Even after carefully placing the lamps I was often not satisfied with the result. Frequently the light sources would not produce a flat enough lighting effect (even brightness with few shadows). The standard method of achieving the lighting I’m looking for is to use a ring light.

A few months ago I got sick of moving my desk lamps between my work spaces and the copy stand I use for macro photography. So I headed on up to a local Staples to pick up an extra halogen desk lamp. Browsing through the lamp aisle I spotted this fluorescent magnifying clip-on lamp (Item# 612507, Model# 13464-US) and thought it could make a nice ring light. So I bought one for $25, a bargain for a 3.5″ diameter ring light.

Converting the lamp is one of the simplest hacks I’ve ever done. You start by following the included instructions for replacing the bulb. Take out the three screws holding the bulb cover and diffuser and pull off the diffuser. Gently lift the bulb off the metal retaining clips while pulling out the connector. The bulb and connector are not rigidly attached so be careful not to break the two apart.

The lens is held in the lamp by three small metal plates underneath the bulb clips. Remove the three screws, pull out the bulb and lens clips and, then the lens. With the lens out reassemble the clips with the screws but reverse the direction of the lens clips so that they don’t cause light reflections outside of the diffuser. Make sure you position the tall sides of the bulb clips away from the center hole like they where originally.

Reinsert the bulb and reattach the diffuser with its three screws. The last step is to permanently remove the hinged lens cover. Simply grab the cover and twist it off the housing leaving hinge bumps that can be cut off with a utility knife.

The result is a good ring light that fits well on my copy stand.

Now I can can use my ring light alone or in combination with one or more halogen lamps to easily get a lighting effect I like.

Cosmic Wimpout Die Ring and Halogen Lights

The much cooler operation of the fluorescent compared to the halogen lamps got me using it with my microscope which only has built in halogen lighting. I quickly got tired of sharing the lamp between the microscope and copy stand so, I bought two more lamps one for the microscope plus one for spare parts in case I need them.imgp0978

Here’s a good article with information about Choosing the Correct Illumination.

Processing my digital photos part 3

Now that I’ve got my photos safely stored so that I won’t loose the originals and, I can edit to my hearts content without loss of quality, I’m ready for the main work.  For the details of how I got here, read the first two parts of this series here and here.

Retouching the photos is the longest portion of my digital photo workflow. I won’t try to cover image enhancement in detail as there are many web sites with detailed information on the various techniques. One tip I do want to point out is, don’t always jump to use brightness and contrast adjustment for poorly lit photos. With underexposed and overexposed photos I most often find the best correction technique is to add layers and set the blend mode to compensate for the poor exposure. Overexposed photos are corrected with layers set to multiply blend mode, underexposure is compensated using screen blend mode. Once you have a blend layer setup you can strengthen the effect by simply duplicating the blend layer. To achieve dodging and burning effects, add masks to the screen and multiply layers. It can be time consuming but I think the results are worth the effort, here’s a couple examples.

This photo of a Rainbow Lorikeet at the Brevard Zoo is horribly underexposed.

dcp01898org

By duplicating the image to a new layer, setting the blend mode to screen and duplicating the new layer two times the photo is rescued from the dustbin.dcp01898

Due to the poor natural lighting, the original photo is overexposed in the upper right and underexposed in the lower left.dcp01411org1

By adding both a masked screen layer and a masked multiply layer the poor lighting is evened out.dcp01411

With the retouching finished the next step is to export the photo as a JPEG file into the JPEG directory I’d previously setup (see part 1 for details of my directory structure). In my preferred photo editing program, Paint Shop Pro, their are multiple ways to perform this function. For single photos there is a JPEG export command and the file “save as” command, when I have multiple photos to export I use the batch processing feature.

Now I’m ready to create albums on CDs for my family and friends and another album for my web site. In the past I used JASC’s Media Center Plus with customized templates to create albums like this 2002 Olympics album. Sadly that application was discontinued years ago so I needed to find something current.

I tried out many free and commercial products but one stood out from the rest, the open source JAVA based JAlbum. This photo album application is extremely customizable and has many skins available so everyone should be able to find a combination they like. I’ve chosen the Chameleon skin by Lazaworx for all my albums so far and have been very pleased with the ease of use and flexibility.

Paint Shop Pro Tutorials

Processing my digital photos part 2

In part one I started describing my work flow for handling digital photos and gave my reasons for developing and using it. This part starts off by inserting a new step in my previously described standard work flow. Before making the image files read-only I now add information to the EXIF data contained in the files. Adding information at this point in the work flow ensures that title, location, etc., info will stay with the photo through all edited versions and copies.

While a quick look might make you think EXIF is a nice consistent standard, my research quickly made me realize this is not the case. EXIF is so flexible that it is more appropriately thought of as an un-standard like PCB Gerber files (RS-274). As with RS-274, EXIF is so flexible that it is not practical for any one program to be able to handle all the possible variations.

The best solution I found for handling the majority of variations in this image metadata is ExifTool by Phil Harvey. This tool set is a Perl library and command line program that can manipulate nearly any piece of EXIF data. While a command line tool is very handy a GUI shell is often desirable and one is available for ExifTool at the HBx Hobbypage. The program, ExifTool GUI, gives you a file manager type interface that makes it even easier to edit EXIF image metadata.

I start off updating the EXIF data by batch adding information like artist and copyright using the command line ExifTool. The GUI tool gives me a shortcut for using the command line tool, when you right click the image’s directory you can select the “Open Command Window Here” item (AFAIK, this capability comes from Windows it isn’t a custom bit exclusive to the ExifTool GUI app). Selecting this menu item gives you a command prompt already located in the image directory ready to accept the command with parameters.

As a time saving shortcut I keep a little text file that has examples and previously used parameter sets. I construct a new command line or copy a previously used one from the text file and paste it into the command window. Here’s an example of a command line I’ve used to mass update image metadata.

"C:Program FilesEXIFtoolexiftool.exe" -Artist="Paul Hutchinson" -Copyright="Paul Hutchinson" -City="Disney World" -Province-State="FL" -Country-PrimaryLocationName="USA" *.jpg

Pressing enter updates all the images in the directory with this new/changed metadata in one quick command. The next step is to update the unique information like the image description using the ExifTool GUI program itself. If some images use the same data (e.g. exposure/composition variations deserving of the same title) then I use standard multiple selection techniques before activating the data editing function.

Once I have all the EXIF data updated, it’s now time to set the read-only attribute of the original image files so that they don’t get accidentally overwritten. The fast way I use is to press Control-A to select all the files in the ExifTool GUI and then press Alt-Enter to open the the standard Windows multiple file properties dialog box. When the multiple file properties dialog opens the “Read-only” checkbox is already in focus so, all I need do is hit Spacebar to mark the checkbox and then hit Enter to change all the selected files to read-only. This is easier to do than to describe in writing, after you’ve done it a few times it will become a fast four keystroke/combination keystroke operation (Ctrl-A, Alt-Enter, Spacebar, Enter). If you don’t or can’t get into the groove of using this quick keyboard operation, then give up on ever being efficient with computers and go ahead and click your way through the process using that killer of UI efficiency the mouse ;-). As an aside why can’t every computer user just stop clicking for Copy/Cut/Paste operations and just use the so much more efficient Ctrl-C/Ctrl-X/Ctrl-V keyboard combinations instead :-).

The next step is to convert the image files to a loss less format in preparation for editing (Note, ExifTool does not alter the image data so, even though technically it’s re-saving a compressed format, there is no data loss). For this conversion step I use PaintShop Pro’s batch conversion feature and its loss-less PSPimage file format. First I select all the originals in the PaintShop file browser (organizer in new versions) then select the “File-Batch Process…” menu item. This opens the batch process dialog with all the files listed in the “Files to process” list box. I set the “Save Mode:” to “NewType” and in the “Save Options” I select PSPimage in the “Type” drop down list and set the “Folder” to the root of particular images sub-directory structure (e.g. D:My Pictures2008-04-19). Finally click the “Start” button in the dialog and watch as the files are converted and copied to the new location.

With the files now in a safe format I can edit away to my hearts content knowing that if I screw things up royally I still have my originals to start over with. That’s all for part two in the series, part three will cover how I take the edited pictures the rest of the way to web/CD albums for others to enjoy.

Processing my digital photos part 1

Over the past month I’ve been revising the work flow for handling my digital photos. With the purchase of my first digital camera back in 2000 I soon realized the need to develop a methodology that kept my photos safe while being easy to find and backup. Keeping the flow simple was important to ensure that I would keep using it for years to come without needing major revisions.

Although I’ve been trying for forty years now, I have never become a really good photographer. The advent of digital photography and scanning of old film and slides to digital formats has been a lifesaver. I can, and usually need to, retouch my photos without spending hours per image in the darkroom. With the easy retouch capability of today it is all too tempting to simply fix the original photos and just save it. This is tempting for its simplicity but my experience has shown that with any original data I regret this choice later on. Once you have overwritten original data you can’t go back so, for all types of digital data I enforce a policy on myself of only modifying copies never the original.

The next consideration is the compression used in many digital image file formats. It is not uncommon for me to go through many retouch iterations before I am satisfied with the result. Being all too familiar with the way PC’s tend to crash at the worst possible time, I like to save my work frequently while working on images. To prevent the loss of image quality I prefer to use a loss-less file format for images while editing and then export to JPEG after I’m finished.

These considerations led me to setting up the first part of my workflow back in 2000. When I add images to my collection, I start by creating a subdirectory under my main image directory. This directory is named with the original date of the images using a year-month-day format of YYYY-MM-DD. I then create two subdirectories below the dated directory, one named Originals and the other named JPEG. The directory structure looks like this:

D:My Pictures
              2007-12-25
                          JPEG
                          Originals
              2008-01-08
                          JPEG
                          Originals

Now I copy the images to the Originals directory and set the files to read-only using normal file management tools. By setting the file attribute most programs will automatically prohibit overwriting the original image. The few programs I regularly use that will overwrite read-only files at least give a warning message when I attempt to overwrite the file.

That’s just about all I want to write up for part one of this series of posts. The final thing to cover is how I’ve automated the directory creation process. It only took a few weeks of using this procedure back in 2000 until I tired of manually creating directories. First I created a simple batch file but it was a messy solution so I whipped up a simple VB application. The app prompted for the date name with the current date preset but editable. Then simply clicking OK created the date named directory and the two subdirectories underneath it. I used that app for many years until I started using the open source, GPL licensed, AutoHotkey scripting language.

Here’s my current directory creating script:

; Create dated directory structure for images
; By Paul Hutchinson released to the public domain 2008
; Revised 1/9/2008

#SingleInstance ignore
#NoTrayIcon

; Assign the full path to the root of your picture directory to RootDir.
; Be sure to include the trailing backslash!
; e.g. C:Documents and SettingsusernameMy DocumentsMy Pictures
RootDir = D:My Pictures

InputBox, DirectoryDate, Create new pictures directory, Enter the date to use for the directory name (YYYY-MM-DD), , 375, 125, , , , , %A_YYYY%-%A_MM%-%A_DD%

if ErrorLevel ;User pressed cancel
ExitApp

; Create the new directory and subdirectories
FileCreateDir, %RootDir%%DirectoryDate%
FileCreateDir, %RootDir%%DirectoryDate%Originals
FileCreateDir, %RootDir%%DirectoryDate%JPEG

ExitApp
